For trial and small lot production

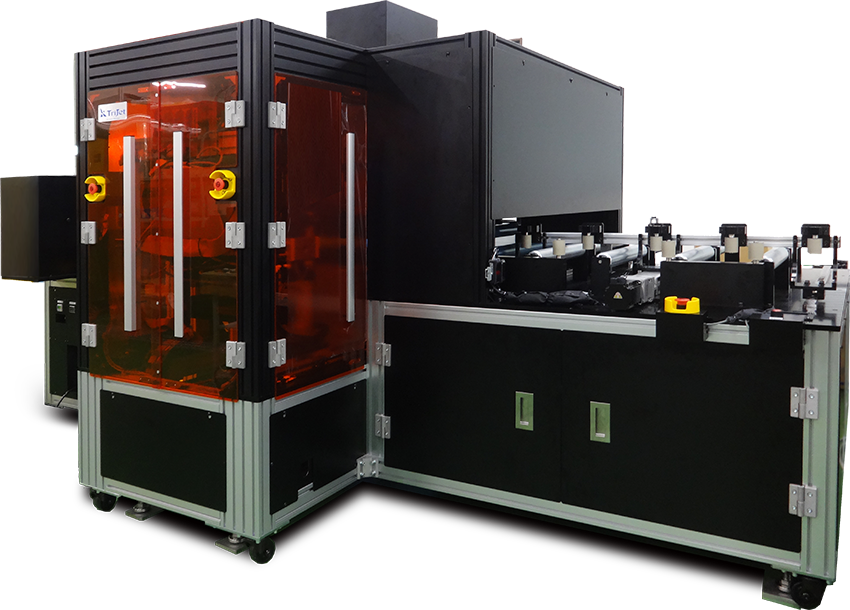

Kenzai JET Edge [Edge Surface of Building Material.]
Inkjet printer for edge surface of interior and other materials
・Print on the edge surface of interior material at horizontal position.
・No complicate material handling (You can feed materials in a flat position)
・Direct printing gives you advantages such as no stock on hand and no pasting process is needed.
| Items | Specification |
| Print Method | Piezo Print Head |
| Ink Type | UV-curable pigment ink CMYK 4-colors |
| Print Mode | Single Pass |
| Print Resolution | 600 × 600 dpi |
| Print Speed | Max. 75m/min ※ |
| Media weight | Max. 250kg ※ |
| Media Thickness | Max. 50mm ※ |
| Material Transfer | Conveyer |
| Ink Supply | Automatic Ink Supply from Main Tank to Sub Tank |
| Ink Control | Negative Pressure Control |
| Head Maintenance | Manual or Automatic |
| Head Capping | Manual |
| Print Data | 1 or 2 bit TIFF File separated to CMYK 4-colors |
| RIP | RIP Software *We can support basic procedure to use RIP software on request. |
| Software | Windows application |
| Others | UV curing system ※・・・subject to conveyor specification |
