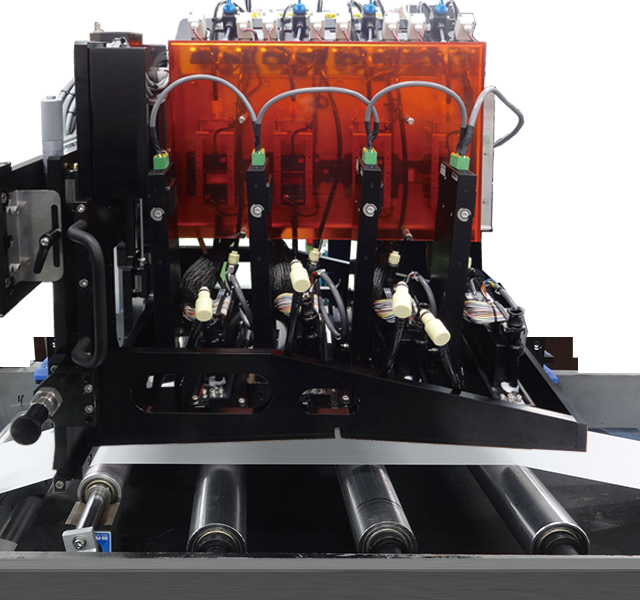

PrintStation [InkjetUnit]

・PrintStation is printing unit which could be installed in your feeding system.
・Adjustable the printing position automatically by using the workpiece positioning sensor from the conveyor as a trigger.
・Driving condition of printhead is adjustable (voltage, pulse width, frequency, temperature*)
*Not all parameters can be set on all head types.
Items | Specifications |
Head Types | Water-Based, Oil, Solvent, UV-curable Inks |
Number of Head | Request Base |
Head Heater Control | Depend on Head Maker |
Printing Method | Single-Pass or Multi-Pass |
Printing Resolution(X)(Y) | 360,720,1440dpi,2880dpi (depend on the head) |
Ink Supplying System | Manual or Automatic Ink Supply System |
Ink Controlling System | Negative Pressure Regulation |
Carriage Height Adjustment | Manual Adjustment(up to 20mm) |
Image File Format | Tiff File(8bit Tiff) |
Software | Windows Application Software |
Dimensions | Depend on the Specification |
Options | UV Lamp, Automatic Maintenance System, Emergency Switch, |
Security System | ・Emergency Stop Switch ・ Door Interlock Mechanism |
