For trial and small lot production
Stage JET EM-1[for Etching Mask Drawing]
This inkjet printer is designed for etching mask drawing.

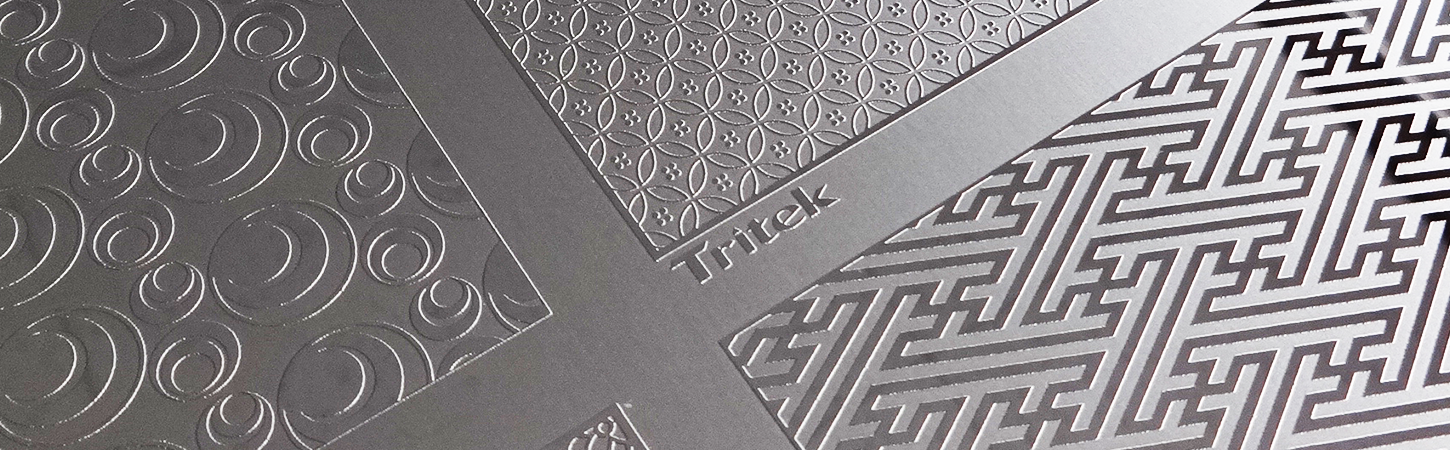

・Used for nameplates, die-cutting plates, mask plates, etc.
・Equipped with a film thickness adjustment function for various applications.
・With the advantages of reduced material loss and no need for plate-making, it is ideal for small-lot projects that could not be handled until now.
| Items | Specification | |
| Head Type | 360 dpi specifications | 600 dpi specifications |
| Number of Head | Standard 1 head.(Customizable to mount multiple heads) | |
| Ink Curing System | LED UV irradiation device | |
| Print Size (MAX) | 610×800mm（Customizable） | |
| Print Speed | Depends on printing conditions | |
| Printing Method | 1～32 Pass | |
| Printing Resolution(X) | 360～2880dpi (Selectable) | 600～2400dpi (Selectable) |
| Printing Resolution(Y) | 360～2880dpi (Selectable) | 600～2400dpi (Selectable) |
| Ink Supply System | Main-Tank＋Sub-Tank System | |
| Ink Control | Negative Pressure Pump | |
| Thickness(MAX) | 50mm | |
| Fixing Media | Air suction to the table（Customizable） | |
| Input Image File Format | Tiff File Format(CAD conversion tool is available as an option) | |
| Software | Windows application soft | |
| Dimensions | 1400mm(W)×1800mm(D)×1785mm(H) ※Depends on specifications | |
| Maintenance | Manual(Automatic is optional) wiping・Automatic capping | |
| Safety System | Emergency switch・Door Interlock Mechanism | |
