Production Facilities
MarkStation[Additional Print]

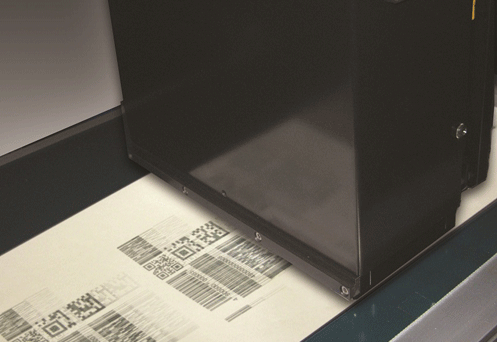

“MarkStation” is Hybrid Printing system for Variable Data Printing of Barcode, QR code, character line with ink jet technology. Using Gate Structure you can adjust printing position easily.
1. High Speed :150m/min(Water-based ink), 100m/min(UV ink)
2. Original Layout software is pre-installed.
＊For more information, please contact us.
| Items | Specification |
| Print Method | Ink JET |
| Ink Type | UV-curable Ink or Water-based Ink |
| Print Resolution | 600×600 dpi or 600×300 dpi |
| System Component | (1)Ink Jet Head (2)Print Unit (3)Manually Z-axis adjustment (4)The gate structure with manually X-axis moving (5)Head Driving Electronics (6)Automatic Ink Supply System (7)Print Control Software (8)Manual Capping Unit (9)Manual Wiping Unit (10)Print Timing Triggered Sensor, Encoder (11)Layout Software |
| Option | (1)Automatic Wiping and Capping System, Motorized X-axis (2)ＵＶ Lamp or UV LED (3)Drying system |
| Software | Windows Application |
| Dimentions | Electric Equipment：800 ｘ 600 ｘ 1500ｍｍ Slider Part：Depend on the Specification |
| Power Requirements | 100V or 200V（2kW）：1-Unit *Fit to each country. |
When you wish customization, please examine our “PrintStation.”
