Production Facilities

A lineup of IJ Printer that can be introduced as production facilities.

Production Facilities

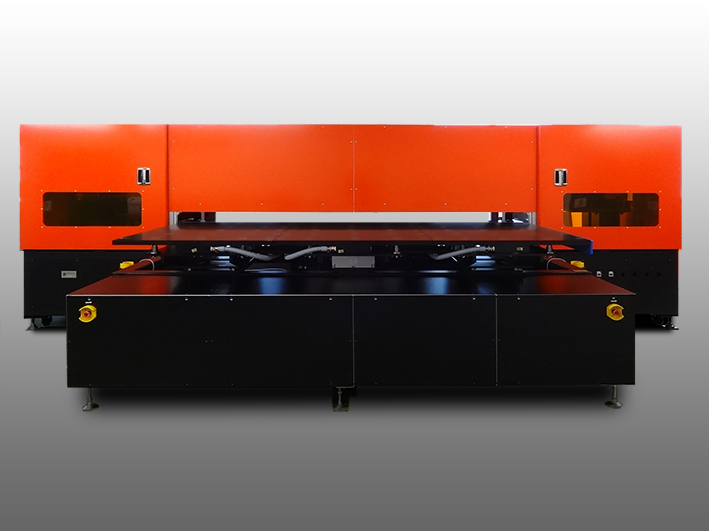

Stage JET IT-1 [for Interior Design Material]

  • ”Stage JET IT-1”prints on interior materials by the shuttle print and is especially useful in situations where small lots and high quality are required.
  • It prints directly onto painted steel sheets such as door materials, partitions, and large home appliances, as well as large format woodworking materials such as MDF and particle board.
  • In addition to inks, we also offer primers and top coats.
  • The airflow function makes it easy to align even heavy substrates.
  • We have demonstration printers for evaluation.
Items Basic Specification(Customize is available)
Print Method Inkjet Printing Using a Piezo Head
Ink Type Highly weather-resistant UV organic pigmented inks with four CMYK colors and up to eight additional colors.
Primer /Top Coat We propose materials that take into account adhesion, coloration and material properties.
The physical properties of the primer, topcoat and ink have been confirmed.
Work Size Max.2,750×1,250 mm, Thicknesses up to 60 mm.
Productivity Approx. 200 ㎡/h (Maximum size, 2 passes, round trip printing, 600 x 600 dpi)
Approx. 100㎡/h(With 4 passes)
* excluding substrate mounting and removal time
Fixing of workpiece Align with the positioning guide and fixing by vacuum suction.
Print Mode ・Unidirectional / Bidirectional Printing
・Multi-Pass Print (1,2,3,4,8,16),
・600×600 dpi or 1,200×1,200 dpi
Ink Supply Method Automatic Ink Supply from Main-tank to Sub-tank
Head Maintenance Automatic Wiping System
Head Capping A cap mechanism is included to protect the nozzle surface of the head when not printing.
Image File Form CMYK 4-color TIFF files
RIP RIP software (optional). If you purchase one of our recommended products, we will assist you in creating ICC profiles and rudimentary use of the software.
Support of Creating Print File We provide technical support for the conversion of your design images into print data.
Software Windows Application
Dimentions 5,400(W)×3,500(D)×1,900(H)(mm)  *Not Including PC Racks
Weight of Unit Approx. 2.0 t
Safety System ・Emergency Stop Switch, Door Interlock Mechanism
・UV Shielding Cover
