R&D Printer
OnePass JET EB[Inkjet printing tester with EB (electron beam) irradiator]

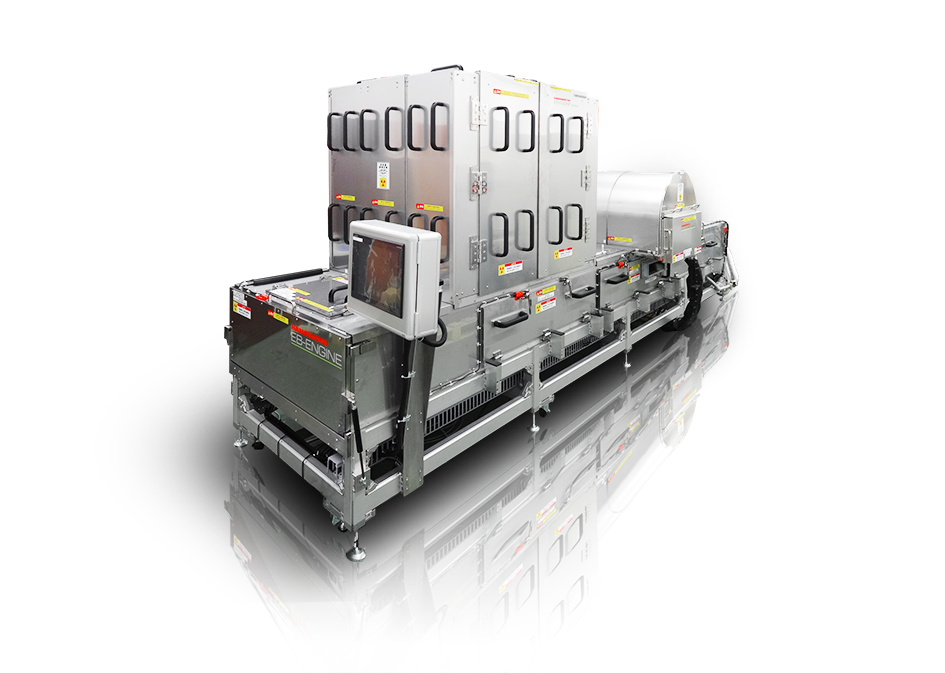

OnePass JET EB
For flexible packaging and various packages
Single-pass, EB ink-based inkjet simulation printer.
Ideal for surface printing of flexible packaging film materials such as OPP, PET, and nylon (*).
Feature１. EB ink compatibility
Can be cured without initiator.
No migration or odor.
Supports high-speed printing with high adhesion.
Feature2. High-speed, high-resolution printing
75ｍ/min[At 600dpi]
Maximum 100m/min
Feature３. Various simulations
Pin Cure, Wet on Wet, resolution change, Irradiation energy can be examined.
| Section name | Item | Details | |
| Ink jet | Compatible Head | Kyocera 600dpi | |
| Number of Heads | 2 rows x 5 colors installed(CMYK+W) | ||
| Printing Method | Single-Pass (PinCure, Wet on wet, Can be simulated) | ||
| Table | A4 (210ｍｍ (W) × 310ｍｍ (H)) | ||
| Head gap adjustment | Electric adjustable (0~10mm) | ||
| EB (Electron beam) |
Acceleration voltage | 50kV~100kV | |
| Irradiation ability | 30kGy@100m/min | ||
| Irradiation width | 450mm (Under development with 650mm width) | ||
| Transport | Option | Can be equipped with a separate pin cure device | |
| Transport speed | 1.27m/sec (75m/min At 600dpi) Maximum 1.67m/sec (100m/min) |
||
| Table | Adjustable height (0~30mm) | ||
(*) Applicable materials and productivity vary depending on the ink used.
